Normas comunes para microesferas de vidrio para señalización vial

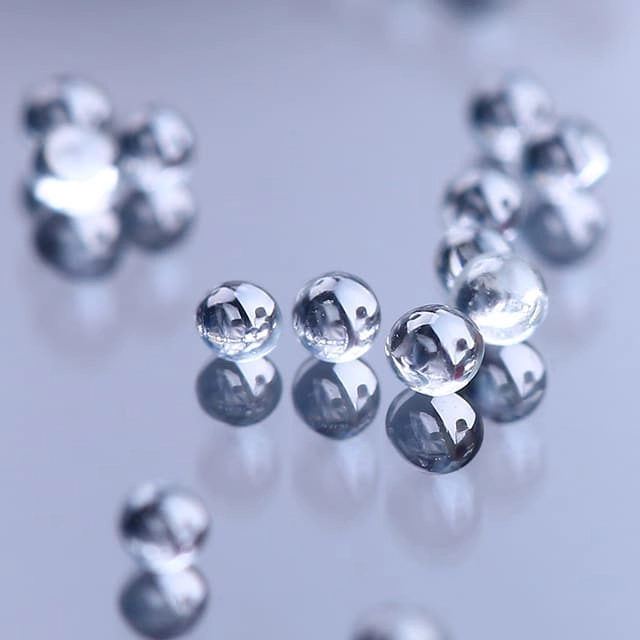

Road safety is a paramount concern for traffic authorities and governments worldwide. One of the most critical elements in ensuring nighttime visibility and driver guidance is the humble road marking glass bead. These tiny spheres, when embedded in road marking paint or thermoplastic, provide retroreflectivity—the crucial property that bounces headlights back to the driver’s eyes, making lanes clearly visible in the dark or during inclement weather.

However, not all glass beads are created equal. To ensure consistency, safety, and durability, international and national bodies have established stringent specifications. This article delves deep into the Normas comunes para microesferas de vidrio para señalización vial, explaining their importance, the specific parameters they measure, and how they impact overall road safety. Understanding these standards is essential for contractors, manufacturers, and transportation agencies aiming to deliver superior traffic management solutions.

Why Standards for Glass Beads Matter

The primary function of glass beads in road markings is retroreflectivity. If the beads are flawed, incorrectly sized, or mixed with impurities, the light from a vehicle’s headlights will scatter rather than return to the driver. This significantly diminishes nighttime visibility, increasing the risk of accidents.

Standards are established to guarantee the following crucial aspects:

1. Optical Performance: Ensuring maximum retroreflectivity over an extended period.
2. Durability: Guaranteeing that the beads withstand the physical impact of traffic and harsh weather conditions without shattering prematurely.
3. Chemical Resistance: Preventing degradation caused by road salts, automotive fluids, and environmental pollutants.
4. Consistency: Allowing contractors and agencies to expect reliable performance, regardless of the manufacturing batch.

By adhering to recognized standards, the industry ensures that road markings perform optimally, saving lives and reducing maintenance costs.

Key Parameters Defined by Standards

Before exploring specific national or international standards, it is vital to understand the fundamental parameters that these regulations typically measure. These physical and chemical characteristics define the quality and performance of a glass bead.

1. Refractive Index (RI)

The Refractive Index is arguably the most critical optical property of a glass bead. It measures how much light is bent as it enters the glass sphere. For optimal retroreflectivity in road markings, a specific RI is required.

• Standard RI (Typically ~1.5): These are the most common beads, suitable for general road markings. They provide excellent visibility under dry conditions.
• High Index (Typically 1.9 or higher): These specialized beads are often used in wet-night visibility applications or airport runways. The higher index allows them to reflect light effectively even when submerged in a thin film of water.

2. Sieve Analysis (Size Gradation)

Glass beads must be of specific sizes to function correctly. If they are too small, they may sink completely into the binder (paint or thermoplastic) and become useless. If they are too large, they may lack the necessary anchorage and be dislodged by the first passing snowplow or heavy vehicle. Sieve analysis determines the distribution of bead sizes within a batch, ensuring an optimal mix for the chosen binder thickness.

3. Roundness (Spherical Particles)

For true retroreflectivity to occur, the glass particle must be spherical. Flawed, oblong, or angular particles will scatter light unpredictably. Standards mandate a high percentage of true spheres (often above 70% or 80%) within a given sample. The presence of non-spherical particles significantly degrades the optical efficiency of the road marking.

4. Flaws (Air Inclusions)

During the manufacturing process, air bubbles can become trapped inside the glass beads. These inclusions disrupt the path of light, reducing retroreflectivity. High-quality standards dictate strict limits on the allowable percentage of beads with visible air inclusions.

5. Water Resistance and Chemical Stability

Roads are harsh environments. Glass beads must resist degradation from prolonged exposure to water, which can leach sodium and other elements from the glass, dulling its surface. Furthermore, they must be resistant to calcium chloride (road salt), sodium sulfide, and various acids found in the environment.

Prominent International and National Standards

Several key standards dictate the quality of Perlas de vidrio para señalización vial across different regions. Let’s examine the most widely adopted ones.

AASHTO M247 (United States)

The American Association of State Highway and Transportation Officials (AASHTO) standard M247 is the cornerstone specification for glass beads used in traffic paint in the United States. It is widely referenced and adopted by many state Departments of Transportation (DOTs).

AASHTO M247 categorizes beads primarily by size gradation (Types 1 through 5, though Type 1 is the most historically common for standard paint).

Key Requirements of AASHTO M247 (Type 1 example):

• Refractive Index: Minimum of 1.50.
• Redondez: Minimum of 70% true spheres.
• Coatings: Beads can be specified with moisture-proof coatings (to prevent clumping during application) or adhesion coatings (to bond better with the binder).
• Chemical Resistance: Must pass tests for resistance to water, hydrochloric acid, calcium chloride, and sodium sulfide.

AASHTO M247 ensures a reliable baseline of performance for the vast network of American highways.

EN 1423 and EN 1424 (Europe)

In the European Union, the standards for glass beads are meticulously defined under the EN (European Norm) system.

• EN 1423: Drop-on Materials – Glass Beads, Antiskid Aggregates, and Mixtures of the Two. This standard covers materials applied onto the surface of the road marking immediately after the binder is laid. It specifies rigorous requirements for size, refractive index, roundness, and resistance to chemicals.
• EN 1424: Premix Glass Beads. This standard applies to beads that are mixed into the road marking material (like thermoplastic or cold plastic) before application. As the marking wears down, these premix beads are exposed, providing long-term retroreflectivity.

The EN standards are known for their detailed categorization of size distributions and their strict testing methodologies, often ensuring a very high quality of product across member states.

BS 6088 (United Kingdom – Superseded but Influential)

The British Standard BS 6088 was historically a very influential specification, widely adopted not just in the UK but in many Commonwealth nations and the Middle East. While it has largely been superseded by the EN 1423/1424 standards in Europe, its legacy remains, and some international tenders still reference it.

BS 6088 classified beads into Class A (premix) and Class B (drop-on). It mandated a minimum refractive index of 1.50 and strict limits on defective beads and foreign matter.

JT/T 446 (China)

As a major manufacturer and consumer of road marking materials, China has its own robust standards. JT/T 446 (Road marking glass beads) outlines the technical requirements for the domestic market and export products. It covers similar parameters to AASHTO and EN standards, including size distribution, refractive index, roundness, and water resistance. Chinese manufacturers often produce beads that comply with international standards (like AASHTO or EN) alongside their domestic standards to serve the global market.

Comparing the Standards: A Quick Reference

While the fundamental goals of these standards are the same, the specific testing methods and allowable tolerances can vary. The table below provides a simplified comparison of key parameters across major standards.

Note: This table provides a generalized overview. Specific requirements can vary based on sub-classes and specific project requirements within each standard.

The Role of Coatings in Enhancing Performance

Standards often address the use of surface coatings on glass beads. These microscopic layers, applied during the manufacturing process, significantly enhance the handling and performance of the beads.

1. Moisture-Proof Coatings (Silicone-based): Glass beads naturally attract moisture. If they absorb humidity during storage or in the dispensing tank of a line striping truck, they will clump together, leading to uneven application and clogged guns. Moisture-proof coatings prevent this clumping, ensuring a smooth, even flow during application.
2. Adhesion Coatings (Silane-based): While standard glass beads embed into paint, they don’t inherently form a strong chemical bond. Adhesion coatings act as a coupling agent, chemically bonding the glass surface to the binder (especially important for thermoplastics and epoxies). This prevents the beads from being easily dislodged by traffic, extending the life of the retroreflective marking.
3. Dual Coatings: Many modern, high-performance beads feature a dual coating—offering both moisture resistance for application and enhanced adhesion for longevity. Ensuring these coatings meet the specified standard is crucial for optimal field performance.

The Future of Glass Bead Standards

As technology advances and the demands on our infrastructure increase, the standards for road marking glass beads are continually evolving.

Visibilidad en noches lluviosas

Standard glass beads (RI 1.5) lose much of their retroreflectivity when covered by a film of water. The water acts as an additional lens, altering the path of the light. To combat this, the industry is increasingly focusing on high-index beads (RI 1.9 or greater) and larger bead clusters. Standards are being updated or newly created to specifically address wet-night performance, requiring rigorous testing under simulated rain conditions.

Autonomous Vehicles (AV) Readiness

The rise of advanced driver-assistance systems (ADAS) and autonomous vehicles presents a new challenge. While human drivers rely on visible light, AV cameras and LIDAR systems “see” the road differently. The industry is currently researching how existing glass bead technologies perform under LIDAR and infrared illumination. Future standards may include specifications to ensure that road markings provide high contrast not just for human eyes, but for the sensors that will increasingly pilot our vehicles.

Environmental Considerations

There is a growing emphasis on sustainability. Future iterations of standards may place stricter limits on the heavy metal content (like lead or arsenic) used in the manufacturing of the glass itself, ensuring that as the beads degrade, they do not introduce harmful pollutants into the surrounding environment.

Conclusión

The seemingly simple glass bead is a highly engineered product essential for global road safety. The Common Standards for Perlas de vidrio para señalización vial, such as AASHTO M247 and EN 1423, are not merely bureaucratic hurdles; they are the scientific foundation that ensures our roads remain visible and safe under the most demanding conditions. By understanding the parameters these standards dictate—from refractive index to roundness and chemical stability—industry professionals can make informed decisions, specify the right materials, and ultimately contribute to safer journeys for everyone.

Acerca del autor

Desde su fundación en 2013, TORY se ha dedicado al desarrollo y la fabricación de microesferas de vidrio, consolidándose como una de las empresas líderes en la industria mundial, especialmente en microesferas de vidrio retrorreflectantes ópticas de alta calidad para señalización vial. TORY cuenta con una sólida capacidad de I+D, lo que nos permite innovar nuestros productos y adaptarnos a las tendencias del mercado.

RI 1.5 standard reflective glass beads

RI 1.7 reflective glass beads

Preguntas frecuentes

Q1: Why are some glass beads referred to as “high-index” and when should they be used?

A: The “index” refers to the Refractive Index (RI). Standard beads typically have an RI around 1.5. “High-index” beads have an RI of 1.9 or higher. These specialized beads are designed specifically for wet-night visibility. When standard beads are covered in rainwater, they lose their ability to reflect light effectively. High-index beads are engineered to bend the light more sharply, allowing them to provide retroreflectivity even when submerged in a thin film of water. They are typically used in areas prone to heavy rainfall or critical zones like airport runways and high-risk intersections.

Q2: How does the size of the glass bead affect the road marking’s performance?

A: Bead size (gradation) is crucial and must be matched to the type and thickness of the binder (paint or thermoplastic) being used. If the beads are too small, they will sink completely into a thick binder layer and provide no initial reflection. If they are too large for a thin paint layer, they won’t be adequately anchored and will be quickly knocked loose by traffic. Standards dictate a specific distribution of sizes (sieve analysis) so that a portion of the beads is exposed immediately for initial visibility, while others remain slightly deeper in the binder to be exposed later as the marking wears down, providing long-term performance.

Q3: What happens if I use glass beads that do not meet established standards like AASHTO or EN?

A: Using non-compliant beads poses a significant safety risk and is often a waste of resources. Beads that fail to meet standards for roundness or refractive index will scatter light poorly, resulting in dim, ineffective road lines at night. If they fail chemical or moisture resistance tests, they may clump during application or degrade quickly on the road surface. Ultimately, non-compliant beads lead to premature marking failure, requiring frequent restriping, increasing maintenance costs, and severely compromising driver safety during low-visibility conditions.
